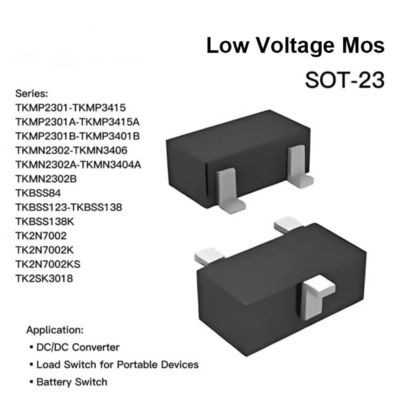

SOT-23 Plastic Package Low Voltage Mosfet 2N7002
Product Details
| Package Outline: | SOT-23 | ||
|---|---|---|---|
| Highlight |
SOT-23 Low Voltage Mosfet,2N7002 Low Voltage Mosfet,2N7002 Low Voltage Mosfet SOT-23 |
||
Product Description
Electrical Characteristics — Suitable For SOT-23 Packages
| Part Number | Type | ESD | VDS | VGS | ID(A) | VGS(TH) | MPQ |
|---|---|---|---|---|---|---|---|
| TKMP2301 | Single-P | No | -20 | ±12 | -3.2 | -0.4~-1.0 | 3000 |
| TKMP2301A | Single-P | No | -20 | ±12 | -3.0 | -0.5~-1.5 | 3000 |
| TKMP2301B | Single-P | No | -20 | ±12 | -2.3 | -0.5~-1.5 | 3000 |
| TKMN2302 | Single-N | No | 20 | ±10 | 3.5 | 0.65~1.2 | 3000 |
| TKMN2302A | Single-N | No | 20 | ±10 | 3.0 | 0.45~1.1 | 3000 |
| TKMN2302B | Single-N | No | 20 | ±12 | 3.0 | 0.4~1.0 | 3000 |
| TKMN2304 | Single-N | No | 30 | ±20 | 3.3 | 1.0~3.0 | 3000 |
| TKMP2305A | Single-P | No | -20 | ±12 | -4.1 | -0.4~-1.0 | 3000 |
| TKMP2305B | Single-P | No | -20 | ±10 | -5.4 | -0.4~-1.0 | 3000 |
| TKMN2306 | Single-N | No | 30 | ±20 | 4.0 | 1.0~3.0 | 3000 |
| TKMP2307 | Single-P | No | -30 | ±20 | -2.7 | -1.0~-3.0 | 3000 |
| TKMN2310 | Single-N | No | 60 | ±20 | 3.0 | 0.5~2.0 | 3000 |
| TKMN2310A | Single-N | No | 60 | ±20 | 3.0 | 1.0~2.0 | 3000 |
| TKMN2312A | Single-N | No | 20 | ±8 | 6.0 | 0.45~1.0 | 3000 |
| TKMP2333 | Single-P | No | -12 | ±8 | -6.0 | -0.4~-1.0 | 3000 |
| TKMN3400A | Single-N | No | 30 | ±12 | 5.8 | 0.6~1.5 | 3000 |
| TKMN3400C | Single-N | No | 30 | ±12 | 2.0 | 0.6~1.5 | 3000 |
| TKMP3401 | Single-P | No | -30 | ±12 | -4.2 | -0.7~-1.3 | 3000 |
| TKMP3401A | Single-P | No | -30 | ±12 | -4.2 | -0.6~-1.3 | 3000 |
| TKMP3401B | Single-P | No | -30 | ±12 | -4.0 | -0.7~-1.3 | 3000 |
| TKMN3402 | Single-N | No | 30 | ±12 | 4.0 | 0.5~1.5 | 3000 |
| TKMN3402A | Single-N | No | 30 | ±12 | 4.0 | 0.6~1.3 | 3000 |
| TKMN3404 | Single-N | No | 30 | ±20 | 5.8 | 1.0~3.0 | 3000 |
| TKMN3404A | Single-N | No | 30 | ±20 | 5.8 | 1.0~2.4 | 3000 |
| TKMN3406 | Single-N | No | 30 | ±20 | 3.6 | 1.0~3.0 | 3000 |
| TKMP3407 | Single-P | No | -30 | ±20 | -4.2 | -1.0~-3.0 | 3000 |
| TKMP3407A | Single-P | No | -30 | ±20 | -4.1 | -1.0~-2.5 | 3000 |
| TKMP3415A | Single-P | Yes | -20 | ±10 | -4.0 | -0.4~-1.0 | 3000 |
| TKMP3415A | Single-P | Yes | -20 | ±10 | -5.0 | -0.4~-1.0 | 3000 |
| TKBSS84 | Single-P | No | -50 | ±20 | -0.13 | -0.9~-2.0 | 3000 |
| TKBSS123 | Single-N | No | 100 | ±20 | 0.17 | 1.0~3.0 | 3000 |
| TKBSS138 | Single-N | No | 50 | ±20 | 0.34 | 0.8~1.5 | 3000 |
| TKBSS138K | Single-N | No | 50 | ±20 | 0.34 | 0.8~1.5 | 3000 |
| TK2N7002 | Single-N | No | 60 | ±20 | 0.34 | 1.0~2.5 | 3000 |
| TK2N7002K | Single-N | Yes | 60 | ±20 | 0.34 | 1.0~2.5 | 3000 |
| TK2N7002KS | Single-N | Yes | 60 | ±20 | 0.34 | 1.0~2.5 | 3000 |
| TK2SK3018 | Single-N | No | 50 | ±20 | 0.3 | 0.6~1.5 | 3000 |
| TKMN2300B | Single-N | No | 20 | ±12 | 4.5 | 0.45~1.0 | 3000 |
| TKMP2301 | Single-P | No | -20 | ±8 | -2.3 | -0.4~-1.0 | 3000 |
| TKMP2301A | Single-P | No | -20 | ±12 | -3.0 | -0.5~-1.5 | 3000 |
| TKMP2301B | Single-P | No | -20 | ±12 | -2.3 | -0.5~-1.5 | 3000 |
| TKMP2303A | Single-P | No | -30 | ±20 | -1.9 | -1~-3.0 | 3000 |
| TKMP2305A | Single-P | No | -20 | ±12 | -4.1 | -0.4~-1.0 | 3000 |
| TKMP2305B | Single-P | No | -20 | ±10 | -5.4 | -0.4~-1.0 | 3000 |
| TKMP2307 | Single-P | No | -30 | ±20 | -2.7 | -1.0~-3.0 | 3000 |
| TKMP2309A | Single-P | No | -60 | ±20 | -1.6 | -1.0~-3.0 | 3000 |
| TKMP2333 | Single-P | No | -12 | ±8 | -6.0 | -0.4~-1.0 | 3000 |
| TKMP3401A | Single-P | No | -30 | ±12 | -4.2 | -0.7~-1.3 | 3000 |
| TKMP3401B | Single-P | No | -30 | ±12 | -4.0 | -0.7~-1.3 | 3000 |
| TKMP3407 | Single-P | No | -30 | ±20 | -4.1 | -1.0~-3.0 | 3000 |
| TKMP3407A | Single-P | No | -30 | ±20 | -4.1 | -1.0~-2.5 | 3000 |
| TKMP3415 | Single-P | Yes | -20 | ±8 | -4.0 | -0.3~-1.0 | 3000 |
| TKMP3415A | Single-P | Yes | -20 | ±10 | -5.0 | -0.55~-1.25 | 3000 |
| TKMP3421A | Single-P | Yes | -30 | ±20 | -4.1 | -1.0~-3.0 | 3000 |
| TKMP2101 | Single-P | Yes | -20 | ±8 | -1.4 | -0.45~-1.0 | 3000 |
| TKBSS84 | Single-P | No | -50 | ±20 | -0.13 | -0.9~-2.0 | 3000 |
| TKMN0100 | Single-N | No | 100 | ±20 | 2.0 | 1.0~2.8 | 3000 |
| TKBSS139 | Single-N | Yes | 60 | ±20 | 0.22 | 0.7~1.45 | 3000 |
| TK2SK3018T | Single-N | No | 50 | ±20 | 0.3 | 0.6~1.5 | 3000 |
Key Features
• Ultra low on-resistance
• For Low power DC to DC converter application
• For Load switch application
• Surface Mount device
Typical Applications
• DC/DC Converter
• Load Switch for Portable Devices
• Battery Switch
