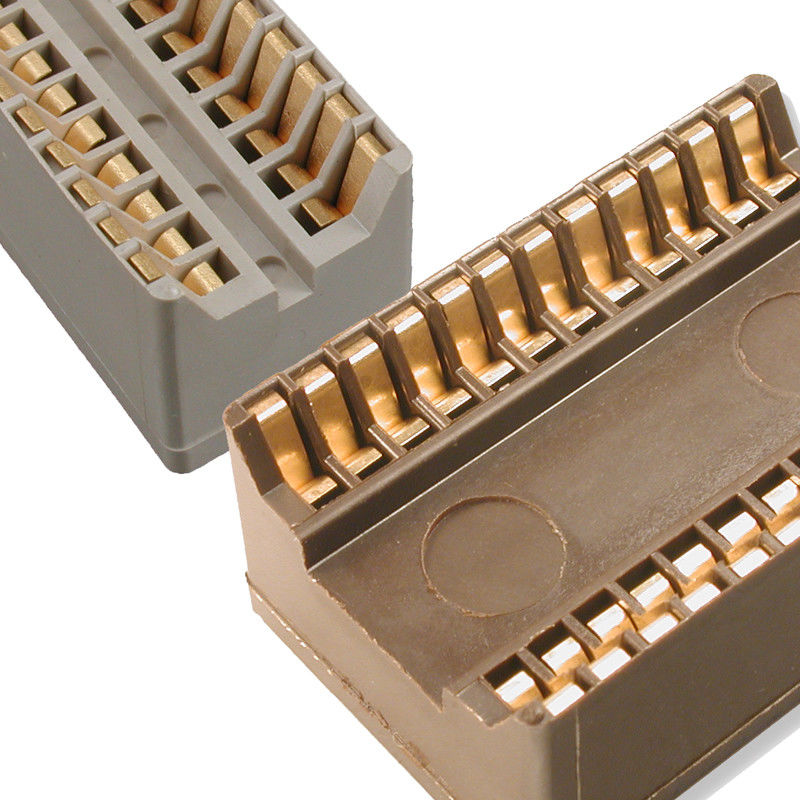

Low Insertion Force Loranger Test Socket
Brand Name:
Loranger
Model Number:
0297002997ASSYA
Place of Origin:
USA
Product Details
| Dielectric Strength: | 1000V AC/minute | Contact Plating: | Gold |
|---|---|---|---|
| Pin Count: | 100 | Number Of Pins: | 15 |
| Life Cycles: | 10,000 | Application: | Testing |
| Manufacturer: | Loranger | Withstand Voltage: | 500V |
| Insulation Resistance: | 1000MΩ | Voltage Rating: | 250V |
| Socket Size: | 15mm X 15mm | Operating Temperature: | -40°C To 125°C |
| Pin Pitch: | 2.54mm | Material: | Metal |
| Socket Type: | Test Socket | ||
| Highlight |
Low Insertion Force Loranger Test Socket,Loranger Test Socket,Positive Contact Wiping Loranger Test Socket |
||
Product Description
Testing Made Easy with Loranger Test Socket Featuring Low Insertion Force and Positive Contact Wiping
Top Loading Designs
- High Side Contacts Help Align Package Leads
- Positive Contact Wiping Action
- Low Insertion Force
- Bottom Socket Standoffs Help Board Cleaning
- Various Sizes and I/O
- Unloading Tool Also Available
| 0297002997ASSYA | 21 Input/Output (I/O) Dual Inline Package (DIP) Socket | DIP | 21 | Multi |
| 02758 141 6215 | 14 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 14 | 2.54 mm0.1 in |
| 02758 161 6215 | 16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 16 | 2.54 mm0.1 in |
| 02758 181 6215 | 18 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 18 | 2.54 mm0.1 in |
| 02758 201 6218B | 16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 16 | 2.54 mm0.1 in |
| 02758 201 6215 | 20 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 20 | 2.54 mm0.1 in |
| 02758 221 6211 | 22 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 22 | 2.54 mm0.1 in |
| 02758 241 6215 | 24 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 24 | 2.54 mm0.1 in |
| 02758 282 6215 | 28 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 28 | 2.54 mm0.1 in |
| 02758 401 6218A | 32 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 32 | 2.54 mm0.1 in |
| 02758 401 6211 | 40 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 40 | 2.54 mm0.1 in |
| 02758 641 6218 | 64 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 64 | 2.54 mm0.1 in |
| 03000 182 0428 | 18 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 18 | 2.54 mm0.1 in |
| 03000 482 642C | 48 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Side-brazed DIP | 48 | 2.54 mm0.1 in |
| 03111 141 6215 | 14 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 14 | 2.54 mm0.1 in |
| 03111 161 6218A | 14 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 14 | 2.54 mm0.1 in |
| 03111 161 6215 | 16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 16 | 2.54 mm0.1 in |
| 03111 181 6215 | 18 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 18 | 2.54 mm0.1 in |
| 03111 201 6218A | 16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 16 | 2.54 mm0.1 in |
| 03111 201 6215 | 20 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 20 | 2.54 mm0.1 in |
| 03111 201 6218 | 40 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 40 | 2.54 mm0.1 in |
| 03111 221 6215 | 22 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 22 | 2.54 mm0.1 in |
| 03111 241 6215 | 24 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 24 | 2.54 mm0.1 in |
| 03111 281 6215 | 28 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 28 | 2.54 mm0.1 in |
| 03111 401 6215 | 40 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 40 | 2.54 mm0.1 in |
| 03112 281 6218A | 24 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 24 | 2.54 mm0.1 in |
| 03112 281 6215 | 28 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 28 | 2.54 mm0.1 in |
| 03140 192 6215 | 19 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Hybrid DIP | 19 | 2.54 mm0.1 in |
| 03140 432 6215 | 43 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Hybrid DIP | 43 | 2.54 mm0.1 in |
| 03175 051 6215 | 5 Input/Output (I/O) and 1.9 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | Hybrid DIP | 5 | 1.9 mm0.075 in |
| 03235 241 6218A | 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 16 | 1.27 mm0.05 in |
| 03235 241 6218B | 12 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 12 | 1.27 mm0.05 in |
| 03235 241 6215 | 24 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 24 | 1.27 mm0.05 in |
| 03235 241 6218 | 20 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 20 | 1.27 mm0.05 in |
| 03235 301 6218D | 30 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 30 | 1.27 mm0.05 in |
| 03235 301 6215 | 30 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 30 | 1.27 mm0.05 in |
| 03235 401 6215 | 40 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 40 | 1.27 mm0.05 in |
| 03545 202 6218H | 8 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP-8 | 8 | 2.54 mm0.1 in |
| 03560 051 X218B | 4 Input/Output (I/O) and 5.08 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 4 | 5.08 mm0.2 in |
| 03560 051 X218 | 6 Input/Output (I/O) and 2.794 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket | DIP | 6 | 2.794 mm0.11 in |
| 03570 271 6217 | 27 Input/Output (I/O) Dual Inline Package (DIP) Socket | SPM27-BA & BB | 27 | Multi |
| 04540 301 6218A | 23 Input/Output (I/O) Dual Inline Package (DIP) Socket | Smart Power 23 lead DIP | 23 | Multi |
| 0297002997 ASSY | 26 Input/Output (I/O) Dual Inline Package (DIP) Socket | DIP | 26 | Multi |
| 0297702995 ASSY | 34 Input/Output (I/O) Dual Inline Package (DIP) Socket | DIP | 34 | Multi |
Product Highlights
Testing Made Easy with Loranger Test Socket Featuring Low Insertion Force and Positive Contact Wiping Top Loading Designs High Side Contacts Help Align Package Leads Positive Contact Wiping Action Low Insertion Force Bottom Socket Standoffs Help Board Cleaning Various Sizes and I/O Unloading Tool ...
