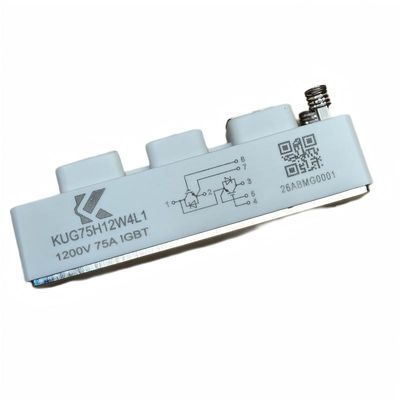

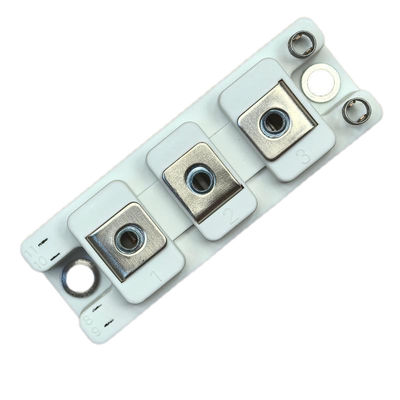

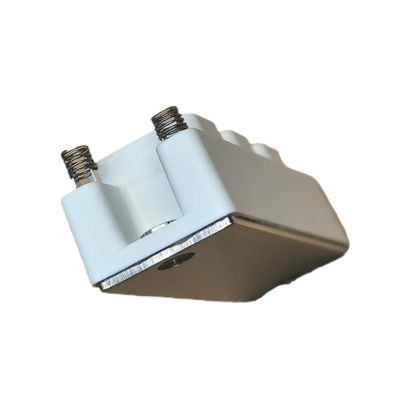

Low VCE sat and Short Circuit Current IGBT Module for and Low Switching Losses
Product Details
| Technology: | Si | Collector-Emitter Saturation Voltage: | 1.5V |
|---|---|---|---|
| Collector-Emitter Capacitance: | 100pF | Installation Style: | SMD/SMT |
| Product: | Diode Power Modules | Manufacturer: | PRX |
| Warranty: | 365days | Power Dissipation: | 500W |
| Subcategory: | Interface ICs | Lead Times: | Immediately Shipment |
| Voltage Rating: | 1200V | Dimensions: | 106.4*61.4*30.5mm |
| Moisture Sensitive: | YES | ||
| Highlight |
Short Circuit Current IGBT Module,Low VCE sat IGBT Module,Low Switching Losses IGBT Module |
||
Product Description
-
Low VCE(sat)
-
10μs Short Circuit current
-
Low switching losses
-
Positive VCE(sat) temperature coefficient
-
Free wheeling diodes with very low forward voltage drop and soft recovery
-
Industrial standard package with copper base plate
Internal Circuit Diagram
Specification Parameters
| TYPE | VCES | VGES | IC | VCE(SAT) | (EON+EOFF) | TJ | Ptot | Circuit | Package | Technology |
| Volts | Volts | Amps | Volts | mJ | Watts | |||||
| KUG40H12S4L | 1200V | ± 20 | 40A | 2.80V | 7.2mJ | 150℃ | 250W | 2 Pack | 34mm | NPT |
| KUG50H12S4L | 1200V | ± 20 | 50A | 2.80V | 7.2mJ | 150℃ | 285W | 2 Pack | ||
| KUG75H12S4L | 1200V | ± 20 | 75A | 2.80V | 10.6mJ | 150℃ | 395W | 2 Pack | ||
| KUG100H12S4L | 1200V | ± 20 | 100A | 3.10V | 13.4mJ | 150℃ | 555W | 2 Pack | ||
| KUG150H12S4L | 1200V | ± 20 | 150A | 2.80V | 17.0mJ | 150℃ | 790W | 2 Pack | ||
| KUG40H12E4L | 1200V | ± 20 | 40A | 2.10V | 8.8mJ | 175℃ | 250W | 2 Pack | Trench FS | |
| KUG50H12E4L | 1200V | ± 30 | 50A | 1.65V | 10.1mJ | 175℃ | 285W | 2 Pack | ||
| KUG75H12E4L | 1200V | ± 30 | 75A | 1.65V | 18.0mJ | 175℃ | 395W | 2 Pack | ||
| KUG100H12E4L | 1200V | ± 30 | 100A | 1.65V | 24.8mJ | 175℃ | 555W | 2 Pack | ||
| KUG40H12W4L | 1200V | ± 20 | 40A | 2.10V | 8.4mJ | 175℃ | 250W | 2 Pack | Trench fast |
|
| KUG50H12W4L | 1200V | ± 20 | 50A | 2.25V | 9.4mJ | 175℃ | 285W | 2 Pack | ||
| KUG75H12W4L | 1200V | ± 20 | 75A | 2.00V | 14.0mJ | 175℃ | 395W | 2 Pack | ||
| KUG100H12W4L | 1200V | ± 20 | 100A | 1.90V | 19.5mJ | 175℃ | 555W | 2 Pack | ||
| KUG150H12W4L | 1200V | ± 20 | 150A | 1.90V | 27.8mJ | 175℃ | 790W | 2 Pack |
Product Highlights
Low VCE(sat) 10μs Short Circuit current Low switching losses Positive VCE(sat) temperature coefficient Free wheeling diodes with very low forward voltage drop and soft recovery Industrial standard package with copper base plate Internal Circuit Diagram Specification Parameters TYPE VCES VGES IC VCE...
