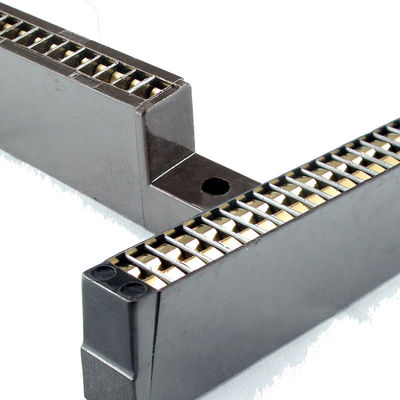

High-Performance Loranger Test Socket for In-line TO and SIP Packages

Name

High-Performance Loranger Test Socket for In-line TO and SIP Packages

Brand Name: Loranger
Model Number: Single Inline Pin (SIP) Sockets
Detail Information
Product Description
Detail Information
Pin Type:
Pogo Pin
Withstand Voltage:
500V
Life Cycle:
100,000 Cycles
Pin Pitch:
1mm
Manufacturer:
Loranger
Contact Force:
2N
Compatibility:
Universal
Voltage Rating:
100V
Application:
Testing And Programming Of IC Chips
Contact Plating:
Gold
Current Rating:
3A
Mounting Type:
Through Hole
Insulation Resistance:
1000MΩ
Socket Body Size:
20mm X 20mm X 10mm
Pin Count:
100
Highlight:

High Performance Loranger Test Socket

,

In-line Loranger Test Socket

,

SIP Packages Loranger Test Socket

Product Description
  • Kelvin and Non Kelvin
  • Top Loading
  • For In-line TO and SIP Packages
  • Modified and Custom Sockets Available
  • May Accommodate More than One Package
  • Fit is Independent of Package Body L, W and H
  • Various Pitches Available

Item #

Item Name

Package Name

Number of Input/Output (I/O)

Pitch
02905 041 6215 4 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 4 2.540 mm0.100 in
02905 041 6225 4 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 4 2.540 mm0.100 in
02950 041 6218A 3 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket TO-92 3 1.270 mm0.050 in
02950 041 6215 4 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket TO-92 4 1.270 mm0.050 in
02970 211 6215 21 Input/Output (I/O) and 1.78 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 21 1.780 mm0.070 in
02970 281 6215 28 Input/Output (I/O) and 1.78 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 28 1.780 mm0.070 in
02975 171 6215 17 Input/Output (I/O) and 1.91 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 17 1.910 mm0.075 in
02975 281 6215 28 Input/Output (I/O) and 1.91 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 28 1.910 mm0.075 in
02996 062 6215 6 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 6 2.540 mm0.100 in
02997 031 6218A 2 Input/Output (I/O) and 5.08 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 2 5.080 mm0.200 in
02997 031 6215 3 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 3 2.540 mm0.100 in
02997 071 6218 7 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 7 2.540 mm0.100 in
02997 091 6218C 8 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 8 2.540 mm0.100 in
02997 091 6215 9 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 9 2.540 mm0.100 in
02997 101 6218A 8 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP/DIP 8 2.540 mm0.100 in
02997 101 6218D 4 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket Olean HVO3 4 2.540 mm0.100 in
02997 101 6218E 10 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket Olean HVO3 10 2.540 mm0.100 in
02997 101 6218F 4 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 4 2.540 mm0.100 in
02997 101 6215 10 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket Olean HVO3 10 2.540 mm0.100 in
02997 121 6215 12 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 12 2.540 mm0.100 in
02997 161 6218J 16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 16 2.540 mm0.100 in
02997 161 6218K 12 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 12 2.540 mm0.100 in
02997 161 6218L 12 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 12 2.540 mm0.100 in
02997 161 6218M 2 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 2 2.540 mm0.100 in
02997 161 X218C 3 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 3 2.540 mm0.100 in
02997 161 X218D 3 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 3 2.540 mm0.100 in
02997 161 X218H 15 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 15 2.540 mm0.100 in
02997 161 6215 16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 16 2.540 mm0.100 in
02997 162 6215 16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 16 2.540 mm0.100 in
02997 211 6218B 15 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 15 2.540 mm0.100 in
02997 211 6218F 20 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 20 2.540 mm0.100 in
02997 211 6218L 10 Input/Output (I/O) and 5.08 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 10 5.080 mm0.200 in
02997 211 6218N 6 Input/Output (I/O) and 5.08 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 6 5.080 mm0.200 in
02997 211 X218P 20 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 20 2.540 mm0.100 in
02997 211 6215 21 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 21 2.540 mm0.100 in
02997 212 6215 21 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 21 2.540 mm0.100 in
02997 361 6218A 36 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 36 2.540 mm0.100 in
03125 062 6215 6 Input/Output (I/O) and 3.18 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 6 3.180 mm0.125 in
03129 042 6215 4 Input/Output (I/O) and 4.11 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket TO-127, -225AB and -254 4 4.110 mm0.162 in
03235 241 6218C 7 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 7 1.270 mm0.050 in
03235 241 6218D 10 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 10 1.270 mm0.050 in
03235 241 6218E 3 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 3 2.540 mm0.100 in
03235 241 6218F 10 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 10 1.270 mm0.050 in
03235 241 X218G 7 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 7 1.270 mm0.050 in
03237 251 6211 25 Input/Output (I/O) and 5.08 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 25 5.080 mm0.200 in
03530 041 6215 4 Input/Output (I/O) and 3.81 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 4 3.810 mm0.150 in
03545 032 X215 3 Input/Output (I/O) and 2.286 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket TO 251 3 2.286 mm0.090 in
03545 202 6218B 22 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 22 2.540 mm0.100 in
03545 202 6218C 36 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 36 2.540 mm0.100 in
03545 202 6218E 20 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 20 2.540 mm0.100 in
03545 202 6218F 32 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 32 2.540 mm0.100 in
03545 202 6218G 8 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 8 2.540 mm0.100 in
03545 202 X218J 6 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 6 2.540 mm0.100 in
03545 202 X218K 16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 16 2.540 mm0.100 in
03545 202 6215 20 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 20 2.540 mm0.100 in
03548 062 X215 6 Input/Output (I/O) and 3.81 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 6 3.810 mm0.150 in
03548 081 6215 8 Input/Output (I/O) and 3.81 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket N/A 8 3.810 mm0.150 in
03548 151 X215 15 Input/Output (I/O) and 3.81 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 15 3.810 mm0.150 in
03560 051 X215 5 Input/Output (I/O) and 2.8 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket TO-218 5 2.800 mm0.110 in
03561 071 6215 5 Input/Output (I/O) and 1.7 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket TO-218 5 1.700 mm0.067 in
03975 061 6217 6 Input/Output (I/O) Single Inline Pin (SIP) Socket TO-247AC 6 Multi
04551 231 X217 23 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket TDA 23 1.270 mm0.050 in
04554 271 X217 27 Input/Output (I/O) and 1 Millimeter (mm) Pitch Single Inline Pin (SIP) Socket SIP 27 1.000 mm0.039 in
