Wire-Formed Contacts and Solid Clamping for Loranger Test Socket Open Top and Clam Shell Designs

Name

Wire-Formed Contacts and Solid Clamping for Loranger Test Socket Open Top and Clam Shell Designs

Brand Name: Loranger
Model Number: Flat Pack Sockets
Detail Information
Product Description
Detail Information
Place of Origin:
US
Manufacturer:
Loranger
Insulation Resistance:
1000 MΩ
Pin Count:
40
Compatibility:
Universal
Application:
IC Testing
Contact Plating:
Gold
Operating Temperature:
-55°C To 150°C
Current Rating:
1A
Withstand Voltage:
500V
Life Cycle:
100,000 Cycles
Pin Pitch:
1mm
Contact Force:
50g
Socket Type:
Test Socket
Insertion Force:
100g
Material:
Ceramic
Highlight:

Loranger Test Socket Open Top

,

Loranger Test Socket Clam Shell Designs

,

Solid Clamping Loranger Test Socket

Product Description

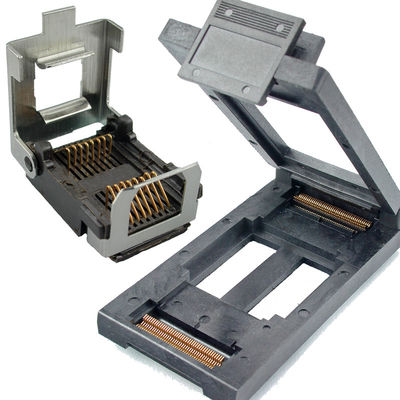

  • Open Top and Clam Shell Designs
  • Accommodate Standard Carriers
  • Rugged Construction
  • Wire-Formed Contacts
  • Solid Clamping of Device Carrier
  • Various Sizes and I/O Available



223181334M6617 332 Input/Output (I/O) Flat Pack Socket Flat Pack 332 Multi
223181334M6618A 332 Input/Output (I/O) Flat Pack Socket Flat Pack 332 Multi
02900 441 6215 44 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 44 1.27 mm0.05 in
02900 501 6215 50 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 50 1.27 mm0.05 in
03194 141 6211 14 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Butterfly Flat Pack 14 1.27 mm0.05 in
03194 161 6211 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Butterfly Flat Pack 16 1.27 mm0.05 in
03194 241 6215 24 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Butterfly Flat Pack 24 1.27 mm0.05 in
03227 161 1215 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Adapter 16 1.27 mm0.05 in
03229 161 1215 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Adapter 16 1.27 mm0.05 in
03230 161 1215 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Adapter 16 1.27 mm0.05 in
03250 161 6211 16 Input/Output (I/O) and 1.02 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 16 1.02 mm0.04 in
03350 161 6218D 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Hybrid Flat Pack 16 1.27 mm0.05 in
03350 161 6215 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Hybrid Flat Pack 16 1.27 mm0.05 in
03351 131 6215 13 Input/Output (I/O) and 1.52 Millimeter (mm) Pitch Flat Pack Socket Hybrid Flat Pack 13 1.52 mm0.06 in
03368 101 ASSY 10 Input/Output (I/O) and 2.7 Millimeter (mm) Pitch Flat Pack Socket MMIC 10 2.7 mm0.106 in
03370 141 6218A 8 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 8 1.27 mm0.05 in
03370 141 6218B 6 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 6 1.27 mm0.05 in
03370 141 6215 14 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 14 1.27 mm0.05 in
03370 161 6215 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 16 1.27 mm0.05 in
03370 241 6215 24 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 24 1.27 mm0.05 in
03466 051 6215 5 Input/Output (I/O) and 1.016 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 5 1.016 mm0.04 in
03466 071 6215 3 Input/Output (I/O) Flat Pack Socket Flat Pack 3 N/A
03466 091 X215 7 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 7 2.54 mm0.1 in
03466 221 6215 22 Input/Output (I/O) and 1.02 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 22 1.02 mm0.04 in
03467 081 6215 8 Input/Output (I/O) Flat Pack Socket Flat Pack 8 N/A
03500 241 6211 24 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 24 1.27 mm0.05 in
03500 261 6211 26 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 26 1.27 mm0.05 in
03500 281 6211 28 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 28 1.27 mm0.05 in
03500 301 6215 30 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 30 1.27 mm0.05 in
03533 061 X2X8C 8 Input/Output (I/O) and 6.35 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 8 6.35 mm0.25 in
03570 D61PX255 136 Input/Output (I/O) and 0.65 Millimeter (mm) Pitch Flat Pack Socket N/A 136 0.65 mm0.026 in
03600 251 X458 10 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 10 2.54 mm0.1 in
03700 641 6215 64 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 64 1.27 mm0.05 in
03701 681 6218B 48 Input/Output (I/O) and 1.02 Millimeter (mm) Pitch Flat Pack Socket CQFP 48 1.02 mm0.04 in
03701 681 6215 68 Input/Output (I/O) and 1.02 Millimeter (mm) Pitch Flat Pack Socket CQFP 68 1.02 mm0.04 in
03702 682 6215 68 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 68 1.27 mm0.05 in
03707 111 6215 11 Input/Output (I/O) and 1.14 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 11 1.14 mm0.045 in
03708 081 6218A 7 Input/Output (I/O) and 1.14 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 7 1.14 mm0.045 in
03708 081 X218B 7 Input/Output (I/O) and 1.14 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 7 1.14 mm0.045 in
03708 081 X2X8 8 Input/Output (I/O) and 1.14 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 8 1.14 mm0.045 in
03708 081 6215 8 Input/Output (I/O) and 1.14 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 8 1.14 mm0.045 in
03711 032 6215 3 Input/Output (I/O) Flat Pack Socket DO / SOD 3 N/A
03725 161 X25A 16 Input/Output (I/O) and 0.76 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 16 0.76 mm0.03 in
03725 161 6217 16 Input/Output (I/O) and 0.76 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 16 0.76 mm0.03 in
03801 401 X218A 40 Input/Output (I/O) and 1.02 Millimeter (mm) Pitch Flat Pack Socket Quad Flat Pack 40 1.02 mm0.04 in
03801 401 6215 40 Input/Output (I/O) and 1.02 Millimeter (mm) Pitch Flat Pack Socket Quad Flat Pack 40 1.02 mm0.04 in
03802 641 CAX7 64 Input/Output (I/O) and 1.016 Millimeter (mm) Pitch Flat Pack Socket CARRIER 64 1.016 mm0.04 in
03802 641 X217 64 Input/Output (I/O) and 1.016 Millimeter (mm) Pitch Flat Pack Socket Quad Flat Pack 64 1.016 mm0.04 in
03804 051 X215 5 Input/Output (I/O) and 2.5 Millimeter (mm) Pitch Flat Pack Socket Quad Flat Pack 5 2.5 mm0.0984 in
03805 321 X217 32 Input/Output (I/O) and 0.65 Millimeter (mm) Pitch Flat Pack Socket Quad Flat Pack 32 0.65 mm0.0256 in
04113 251 6218A 25 Input/Output (I/O) Flat Pack Socket Quad Flat Pack 25 Multi
04114 361 6215 36 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 36 1.27 mm0.05 in
04121 111 X217 10 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 10 1.27 mm0.05 in
04121 161 X217 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 16 1.27 mm0.05 in
04123 161 6218A 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 16 1.27 mm0.05 in
04123 161 X218B 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 16 1.27 mm0.05 in
04123 161 6217 16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 16 1.27 mm0.05 in
04250 841 X218A 48 Input/Output (I/O) and 0.5 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 48 0.50 mm0.02 in
04250 841 6217 84 Input/Output (I/O) and 0.5 Millimeter (mm) Pitch Flat Pack Socket CQFP 84 0.50 mm0.02 in
04316 251 X215 25 Input/Output (I/O) Flat Pack Socket Flat Pack 25 Multi
04325 101 6218A 10 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 10 1.27 mm0.05 in
04325 101 6217 10 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 10 1.27 mm0.05 in
04326 061 X217 6 Input/Output (I/O) and 5.08 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 6 5.08 mm0.2 in
04326 111 X217 11 Input/Output (I/O) and 3.81 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 11 3.81 mm0.15 in
04326 151 X217 15 Input/Output (I/O) and 3.81 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 15 3.81 mm0.15 in
04326 161 X217 16 Input/Output (I/O) and 3.81 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 16 3.81 mm0.15 in
04334 121 X218G 6 Input/Output (I/O) and 0.95 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 6 0.95 mm0.0374 in
04374 041 6215 4 Input/Output (I/O) Flat Pack Socket Flat Pack 4 N/A
04435 241 X215 24 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 24 2.54 mm0.1 in
04437 641 6218A 24 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 24 1.27 mm0.05 in
04437 641 6217 64 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 64 1.27 mm0.05 in
04437 741 6217 74 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Flat Pack Socket Flat Pack 74 1.27 mm0.05 in
223181040 6218A 40 Input/Output (I/O) Flat Pack Socket Flat Pack 40 Multi
223181040 6217 40 Input/Output (I/O) Flat Pack Socket Flat Pack 40 Multi
