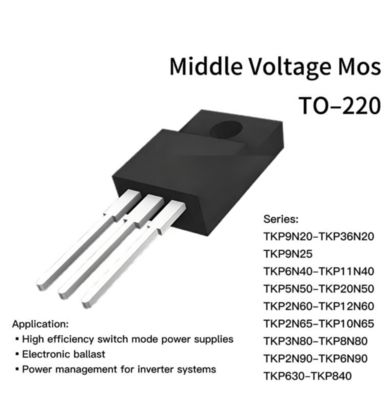

TO-220 Middle Voltage Mosfet P9N20-P36N20 Plastic Package
Product Details
| Package Outline: | TO-220 | ||
|---|---|---|---|
| Highlight |
TO-220 Middle Voltage Mosfet,P9N20-P36N20 Middle Voltage Mosfet,Plastic Package Middle Voltage Mosfet |
||
Product Description
Electrical Characteristics — Suitable For TO-220 Packages
| Part Number | VDS(V) | ID(A) | Rdson(mΩ) @VGS=4.5V | MPQ |
|---|---|---|---|---|
| TKP9N20 | 200 | 9.0 | 0.4 | 1000 |
| TKP630 | 200 | 9.0 | 0.4 | 1000 |
| TKP18N20 | 200 | 18.0 | 0.18 | 1000 |
| TKP640 | 200 | 18.0 | 0.18 | 1000 |
| TKP36N20 | 200 | 36.0 | 0.076 | 1000 |
| TKP9N25 | 250 | 8.1 | 0.45 | 1000 |
| TKP634 | 250 | 8.1 | 0.45 | 1000 |
| TKP6N40 | 400 | 5.5 | 1 | 1000 |
| TKP730 | 400 | 5.5 | 1 | 1000 |
| TKP11N40 | 400 | 11.4 | 0.48 | 1000 |
| TKP740 | 400 | 11.4 | 0.48 | 1000 |
| TKP5N50 | 500 | 4.5 | 1.5 | 1000 |
| TKP830 | 500 | 4.5 | 1.5 | 1000 |
| TKP9N50 | 500 | 9.0 | 0.73 | 1000 |
| TKP840 | 500 | 9.0 | 0.73 | 1000 |
| TKP13N50 | 500 | 13.0 | 0.48 | 1000 |
| TKP16N50 | 500 | 16.0 | 0.38 | 1000 |
| TKP18N50 | 500 | 18.0 | 0.265 | 1000 |
| TKP20N50 | 500 | 20.0 | 0.23 | 1000 |
| TKP2N60 | 600 | 2.0 | 5 | 1000 |
| TKP4N60 | 600 | 4.0 | 2.5 | 1000 |
| TKP5N60 | 600 | 4.5 | 2.5 | 1000 |
| TKP6N60 | 600 | 6.2 | 1.5 | 1000 |
| TKP7N60 | 600 | 7.0 | 1.2 | 1000 |
| TKP8N60 | 600 | 7.5 | 1.2 | 1000 |
| TKP10N60 | 600 | 9.5 | 0.8 | 1000 |
| TKP12N60 | 600 | 12.0 | 0 .65 | 1000 |
| TKP2N65 | 650 | 2.0 | 5 | 1000 |
| TKP4N65 | 650 | 4.0 | 2.5 | 1000 |
| TKP5N65 | 650 | 4.5 | 2.5 | 1000 |
| TKP6N65 | 650 | 6.2 | 1.5 | 1000 |
| TKP7N65 | 650 | 7.0 | 1.2 | 1000 |
| TKP8N65 | 650 | 7.5 | 1.2 | 1000 |
| TKP10N65 | 650 | 9.5 | 0.8 | 1000 |
| TKP12N65 | 650 | 12.0 | 0.65 | 1000 |
| TKP3N80 | 800 | 3.0 | 4.8 | 1000 |
| TKP6N80 | 800 | 2.5 | 2.5 | 1000 |
| TKP7N80 | 800 | 6.6 | 1.9 | 1000 |
| TKP8N80 | 800 | 8.0 | 1.55 | 1000 |
| TKP2N90 | 900 | 2.2 | 7.2 | 1000 |
| TKP4N90 | 900 | 4.0 | 4.2 | 1000 |
| TKP5N90 | 900 | 5.0 | 2.3 | 1000 |
| TKP6N90 | 900 | 6.0 | 2.3 | 1000 |
Key Features
• Fast Switching
• Low ON Resistance
• Low Gate Charge
• Low Reverse transfer capacitances
• 100% Single Pulse avalanche energy Test
Typical Applications
• High efficiency switch mode power supplies
• Electronic ballast
• Power management for inverter systems
Shipping & Support
Shipping Details
• Standard Lead Time: 1–2 Weeks
• Shipping Time: 3–40 working days (As your choice & your country)
After-Sales Service
• Free Samples
• Warranty: 2 Year
• 24-Hour Online Service: Solve your product problems and any other issues
