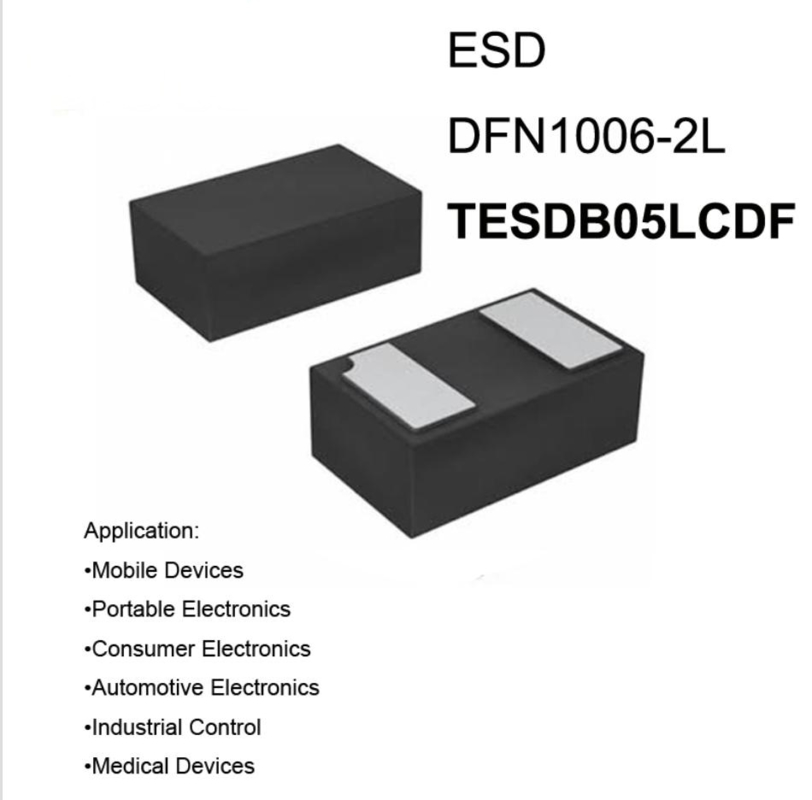

DFN1006-2L ESD Protection Devices – Ultra-Compact TVS Solutions for SMD Design
Product Details

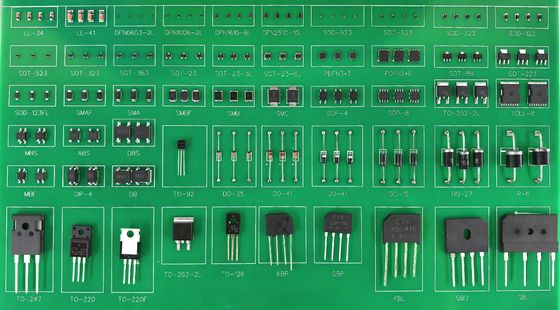

| Package Outline: | DFN1006-2L | ||
|---|---|---|---|
| Highlight |
DFN1006-2L ESD Protection Devices,SMD ESD Protection Devices,TVS ESD Protection Devices |
||
Product Description
Electrical Characteristics — Suitable For DFN1006-2L Packages
| Part Number | VR(V) | IR(uA) | VBR(V) | Ipp(A) | Vc(V) | Ppp(W) | MPQ |
|---|---|---|---|---|---|---|---|
| ESDB2V5DF | 2.5 | 0.05 | 3 | 10.0 | / | 100 | 10000 |
| ESDB03DF | 3.3 | 1.0 | 3.6 | 7.0 | 9 | 80 | 10000 |
| ESDB03DFX | 3.3 | 0.05 | 6~8~ | 14.0 | 12 | 210 | 10000 |
| ESDB03BCDF | 3.3 | 1.0 | 3.7 | 10.0 | / | 100 | 10000 |
| ESDB03SCDF | 3.3 | 0.05 | 7~10~ | 4.0 | 7 | 34 | 10000 |
| ESDB03SCDFA | 3.3 | 0.1 | 7~10 | 7.0 | 6 | 53 | 10000 |
| ESDB03LCDF | 3.3 | 1.0 | 3.8 | 4.0 | 16 | 80 | 10000 |
| ESDB4V5DF | 4.5 | 1.0 | 4.7~ | 8.0 | 9 | 80 | 10000 |
| ESDB4V5DFP | 4.5 | 1.0 | 4.6~ | 27.0 | 10 | 300 | 10000 |
| ESDB05DFA | 5.0 | 0.1 | 5.6~8.5 | 7.0 | 7.2 | 60 | 10000 |
| ESDB05DFB | 5.0 | 0.15 | 6~ | 2.0 | 12.5 | 20 | 10000 |
| ESDB05DFC | 5.0 | 0.1 | 5.5 | 5.0 | 13 | 100 | 10000 |
| ESDB05DFCS | 5.0 | 0.5 | 6 | 18.0 | 8.5 | 200 | 10000 |
| ESDB05DFP | 5.0 | 1.0 | 5.5~ | 20.0 | 10.5 | 300 | 10000 |
| ESDB05LCDF | 5.0 | 1.0 | 6 | 4.5 | 25 | 100 | 10000 |
| ESDB05BCDF | 5.0 | 1.0 | 6 | 1.0 | 8.5 | 30 | 10000 |
| ESDB05BXDF | 5.0 | 1.0 | 6 | 8.0 | 21 | 150 | 10000 |
| ESDB05VCDF | 5.0 | 0.1 | 6 | 4.0 | 12.5 | 60 | 10000 |
| ESD05DF | 5.0 | 0.1 | 6~8 | 10.0 | 12 | 150 | 10000 |
| ESD05DFP | 6.3 | 1.0 | 5.8~8 | 30.0 | 13 | 350 | 10000 |
| ESD05UCDF | 5.0 | 1.0 | 6 | 4.5 | 13 | 75 | 10000 |
| ESDB07DF | 7.0 | 0.1 | 7.5 | 8.0 | 15 | 150 | 10000 |
| ESD07DF | 7.0 | 0.1 | 7.5~9.5 | 9.0 | / | 150 | 10000 |
| ESD07DFP | 7.0 | 0.5 | 7.5~9.5 | 20.0 | 15.5 | 350 | 10000 |
| ESD09DFP | 9.0 | 0.1 | 10~12.5 | 18.0 | 18 | 300 | 10000 |
| ESDB12DF | 12.0 | 0.2 | 13.3 | 4.0 | 22 | 150 | 10000 |
| ESD12DFP | 12.0 | 0.1 | 13.3~16 | 15.0 | 21 | 350 | 10000 |
| ESD12DFX | 12.0 | 0.1 | 13.5~16.5 | 30.0 | 21 | 630 | 10000 |
| ESDB15DF | 15.0 | 1.0 | 16.7~ | 9.8 | / | 325 | 10000 |
| ESD15DFP | 15.0 | 0.1 | 16.5~20 | 15.0 | 25 | 350 | 10000 |
| ESD15DFX | 15.0 | 1.0 | 16~20 | 28.0 | 29 | 900 | 10000 |
| ESDB18DF | 18.0 | 0.5 | 19~24 | 5.0 | 30 | 150 | 10000 |
| ESDB18LCDFCS | 18.0 | 0.05 | 18.5~ | 4.0 | 9 | 40 | 10000 |
| ESD20DFX | 20.0 | 1.0 | 22~26 | 40.0 | 30 | 1400 | 10000 |
| ESDB24DF | 24.0 | 0.5 | 26.7~32 | 4.0 | 51 | 240 | 10000 |
| ESD24DF | 24.0 | 0.1 | 26.5~31.5 | 4.0 | 47 | 100 | 10000 |
| ESDB36DF | 36.0 | 1.0 | 40~ | 1.0 | / | 120 | 10000 |
| ESDB36DFP | 36.0 | 1.0 | 40~ | 4.0 | 64 | 400 | 10000 |
| ESD36DFP | 36.0 | 0.1 | 40 | 4.0 | 60 | 300 | 10000 |
Key Features
• Protects one line I/O or power line
• Low clamping voltage
• Low leakage current
• Ultra low capacitance: 100pF(max)
• RoHS compliant
Typical Applications
• USB ports
• Display port
• Wireless communications
• Digital visual interface (DVI)
• Cellular handsets & accessories
