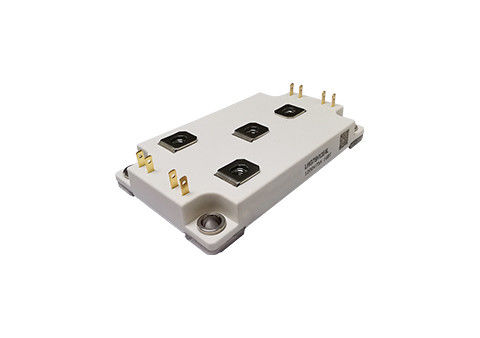

Name: KHG75H12E4L 8MHz IGBT Module High Voltage High Frequency Power Distribution In Industries
Brand: Krunter Future Tech (Dongguan) Co., Ltd.
SKU: KHG75H12E4L
Availability: InStock

Brand Name:	Krunter
Model Number:	KHG75H12E4L
MOQ:	1
Price:	Negotiable
Payment Terms:	Negotiable
Supply Ability:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product:

IGBT Module

Output Type:

Rail To Rail

Date Code:

Newest Code

Maximum Clock Frequency:

8 MHz

Maximum Junction Temperature:

175°C

Input Voltage Range:

4.5 V To 18 V

Warranty:

365days

Stock:

100PCS

Operating Temperature:

-40 To +125

Configuration:

6-Pack

Maximum Collector Current:

600A

Factory Packing Quantity:

Moisture Sensitive:

YES

Collector-Emitter Saturation Voltage:

1.8V

Feature:

High Current

Packaging Details:

Standard Packing

Supply Ability:

Negotiable

Highlight:

KHG75H12E4L IGBT Module

8MHz IGBT Module

High Frequency igbt power module

Product Description

KHG75H12E4L IGBT Module for High Voltage and High Frequency Power Distribution in Industries

KHG75H12E4L

NPT IGBT technology
10μs short circuit capability
Low switching losse
VCE(sat) with positive temperature coefficient
Square RBSOA
Low inductance case
Fast & soft reverse recovery anti-parallel FWD
Isolated copper baseplate using DBC technology

Application	Internal Circuit Diagram
Welding Machines Inverters Induction Heating Plasma Cutting Machines

Specification Parameters

TYPE	VCES Volts	VGES Volts	IC Amps	VCE(SAT) Volts	(EON+EOFF) mJ	TJ	Ptot Watts	Circuit	Package	Technology

KWG50F12E4T	1200V	± 20	50A	2.90V	6.9mJ	150℃	408	4 Pack	62mm(T)	NPT
KWG75F12E4T	1200V	± 20	75A	2.90V	11.8mJ	150℃	595	4 Pack		NPT

KHG75H12E4L 8MHz IGBT Module High Voltage High Frequency Power Distribution In Industries 2
