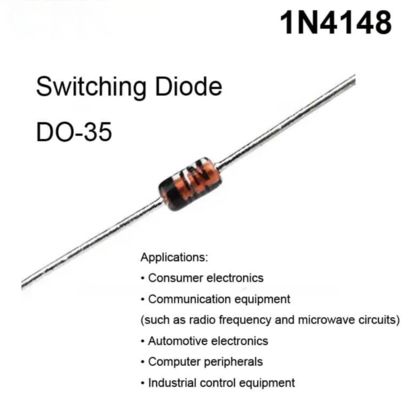

1N4148 DO-35 Switching Diode-CTK Switching Diode Manufacturer

Electrical Characteristics — 1N4148 Parameter Value Brand CTK Package Outline DO-35 Part Number 1N4148 Datasheet 1N4148 Datasheet Show More Key Features • Low Reverse Current • Surface Mount Package Ideally Suited for Automatic Insertion • Fast Switching Speed Typical Applications • Consumer ...

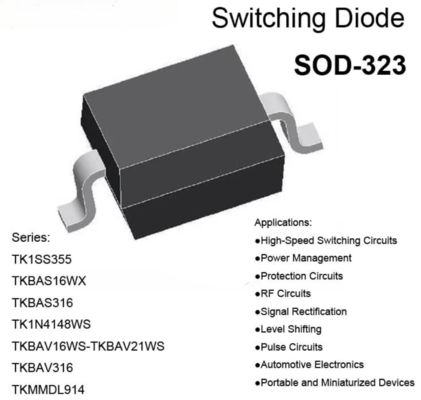

SOD-323 Package Outline Plastic Encapsulated Switching Diodes Designed to Provide Switching Performance in Electronic Devices

Electrical Characteristics — Package:SOD-323 Part Number PD (mW) IO (mA) VR (V) VF (V) VF@IF (mA) IR (μA) IR@VR (V) trr (ns) Package MPQ 1N4148WS 200 150 100 1.25 150 1 75 4 SOD-323 3000 1N4448WS 200 250 75 1.25 150 2.5 75 4 SOD-323 3000 1SS355 200 100 80 1.1 100 0.1 80 4 SOD-323 3000 BAS16WX 250 ...

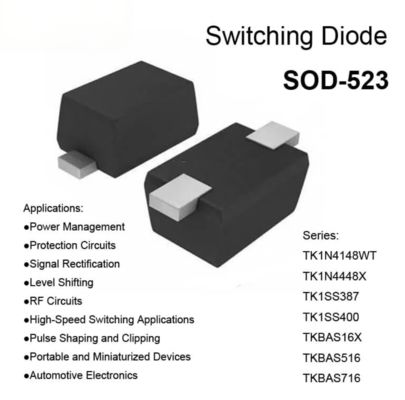

SOD-523 Package Outline Plastic Encapsulated Switching Diodes Engineered for Compact Size and Switching in Electronic Circuits

Key Features • Small Package • Low Reverse Current • Fast Switching Speed • Surface Mount Package Ideally Suited for Automatic Insertion Typical Applications • Power Management • Protection Circuits • Signal Rectification • Level Shifting • RF Circuits • High-Speed Switching Applications • Pulse ...

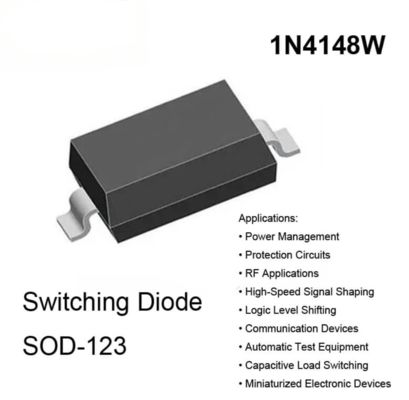

1N4148W SOD-123 Fast Switching Diode Switching Diode Manufacturer

Electrical Characteristics — 1N4148W Parameter Value Package Outline SOD-123 Reverse Voltage (VR) 100 V Average Forward Current (IFAV ) 150 mA Power Dissipation (Pd ) 350 mW Minimum Packaging Quantity (MPQ) 3000 pcs / reel Key Features • Ultra-fast switching speed • Low forward voltage drop • High ...

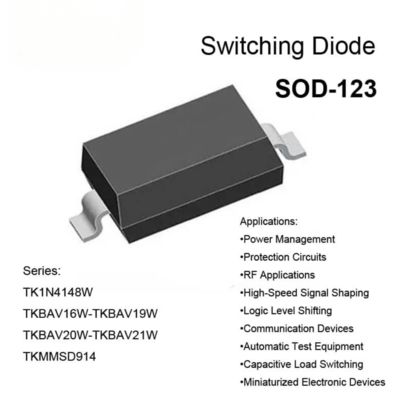

SOD123 Package Outline Plastic Encapsulated Switching Diodes Suitable for Fast Switching and Electronic Device Integration

Electrical Characteristics — Package:SOD-123 Part Number PD (mW) IO (mA) VR (V) VF (V) VF@IF (mA) IR (μA) IR@VR (V) trr (ns) Package MPQ 1N4148W 350 150 100 1.25 150 1.0 75 4 SOD-123 3000 1N4448W 500 250 75 1.25 150 2.5 75 4 SOD-123 3000 BAV116W 400 150 75 1.25 150 1.0 75 4 SOD-123 3000 BAV19W 500 ...

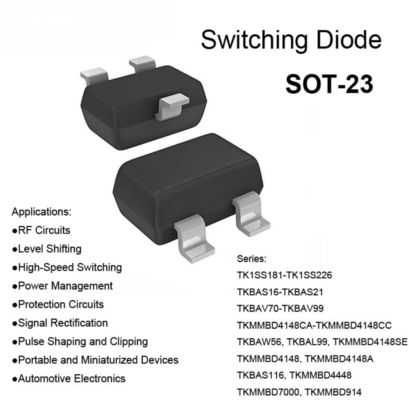

SOT-23 Package Outline Plastic Encapsulated Switching Diodes Designed for Switching and Fast Recovery in Electronic Devices

Electrical Characteristics — SOT-23 Switching Diodes Part Number PD (mW) IO (mA) VR (V) VF (V) VF@IF (mA) IR (μA) IR@VR (V) trr (ns) Package MPQ 1SS181 150 mW 100 mA 80 V 1.2 V 100 mA 0.5 μA 80 V 4 ns SOT-23 3000 ISS184 150 mW 100 mA 80 V 1.2 V 100 mA 0.5 μA 80 V 4 ns SOT-23 3000 ISS187 150 mW 100 ...

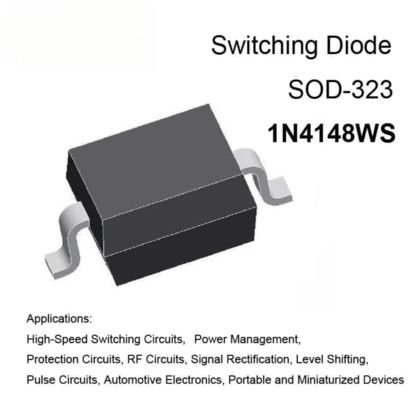

1N4148WS SOD-323 Switching Diode Plastic-Encapsulate Silicon Epitaxial Planar

Electrical Characteristics — 1N4148WS Parameter Value Package Outline SOD-323 Minimum Packaging Quantity (MPQ) 3000 pcs / reel Power Dissipation (Pd ) 200 mW Maximum Repetitive Reverse Voltage (VRM) 100 V Reverse Voltage (VR) 71 V Forward Current (IFM) 300 mA Surge Forward Current IFSM (t = 8.3 ms) ...

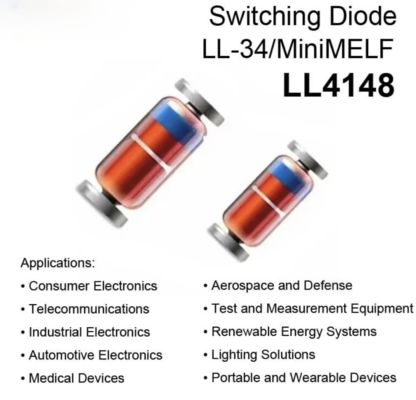

LL4148 LL-34 Mini MELF Switching Diode Switching Diode Manufacturer

Electrical Characteristics — LL4148 Parameter Value Package Outline LL-34 / MiniMELF Reverse Voltage (VR) 75 V Forward Current (IF) 200 mA Minimum Packaging Quantity (MPQ) 2500 pcs / reel Key Features • Miniaturization: extremely small SOD-80C (MiniMELF) package for high-density PCBs • Fast ...
