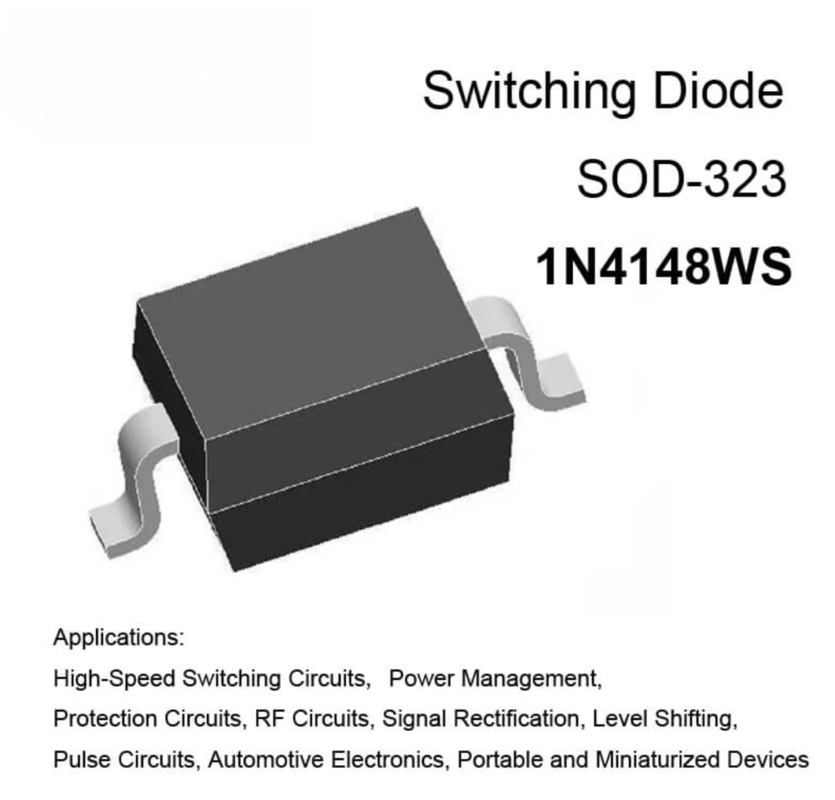

1N4148WS SOD-323 Switching Diode Plastic-Encapsulate Silicon Epitaxial Planar

Name: 1N4148WS SOD-323 Switching Diode Plastic-Encapsulate Silicon Epitaxial Planar
Brand: Krunter Future Tech (Dongguan) Co., Ltd.
SKU: 1N4148WS SOD-323
Availability: InStock

Brand Name:	Krunter Future
Model Number:	1N4148WS SOD-323
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T,MoneyGram
Supply Ability:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Datasheet::

1N4148WS Datasheet

Packaging Details:

Negotiable

Supply Ability:

Negotiable

Highlight:

Plastic-Encapsulate Switching Diode

Switching Diode 1N4148WS

Silicon Epitaxial Planar Switching Diode

Product Description

Electrical Characteristics — 1N4148WS

Parameter	Value
Package Outline	SOD-323
Minimum Packaging Quantity (MPQ)	3000 pcs / reel
Power Dissipation (P_d)	200 mW
Maximum Repetitive Reverse Voltage (VRM)	100 V
Reverse Voltage (VR)	71 V
Forward Current (IFM)	300 mA
Surge Forward Current IFSM (t = 8.3 ms)	2 A

Key Features

• Low Reverse Current

• Surface Mount Package Ideally Suited for Automatic Insertion

• Fast Switching Speed

• For General Purpose Switching Applications

Typical Applications

• High-Speed Switching Circuits

• Power Management

• Protection Circuits

• RF Circuits, Signal Rectification

• Level Shifting

• Pulse Circuits

• Automotive Electronics

• Portable and Miniaturized Devices

Shipping & Support

Shipping Details

• Lead Time: 1–2 Weeks

• Shipping Time: 3–40 working days (As your choice & your country)

• Item Location: Dongguan, Guangdong, China

After-Sales Service

• Free Samples

• Warranty: 2 Year

• 24-Hour Online Service: Solve your product problems and any other issues
