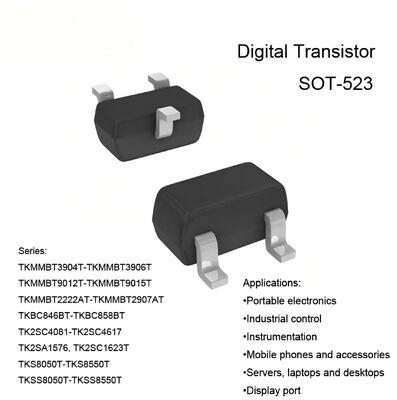

SOT-523 Digital Transistor with 150mW Power Dissipation and 10K/10K Resistor Ratio for Simplified Circuit Design
Product Details
| Package Outline: | SOT-523 | ||
|---|---|---|---|
| Highlight |
150mW Digital Transistor,SOT-523 Digital Transistor,10K/10K Resistor Ratio Digital Transistor |
||
Product Description
| Part Number | Io (A) | VCC | Gi | Pc (mW) | R1/R2 | Makin | MPQ |
|---|---|---|---|---|---|---|---|
| DTA114EE | -0.1 | -50 | -30 | 150 | 10K/10K | 14 | 3000 |
| DTC114EE | 0.1 | 50 | 30 | 150 | 10K/10K | 24 | 3000 |
| DTC143ZE | 0.1 | 50 | 80 | 150 | 4.7K/47K | E23 | 3000 |
| DTA144EE | -0.1 | -50 | -68 | 150 | 47K/47K | 16 | 3000 |
| DTC144EE | 0.1 | 50 | 150 | 150 | 47K/47K | 26 | 3000 |
| DTC123JE | 0.1 | 50 | 80 | 150 | 2.2K/47K | E42 | 3000 |
- Integrated Resistors: Built-in bias resistors simplify design and save PCB space.
- Ultra-Compact Size: SOT-523 is ideal for modern space-constrained electronics.
- Low Power Consumption: Suitable for low-voltage and low-current applications.
- Three-Terminal Configuration: Standard collector-base-emitter layout.
- Simplified Circuit Design: Reduces need for external components.
- Surface-Mount Technology: Compatible with automated assembly processes.
- Low Parasitic Elements: Supports high-frequency signal integrity.
- Limited Current and Power Handling: Optimized for signal-level operation.
- Portable Electronics
- Industrial Control
- Instrumentation
- Mobile Phones & Accessories
- Servers, Laptops, and Desktops
- Display Port
- Lead Time: 0-2 Weeks
- Delivery: 3-40 working days (As your choice & your country)
- Free Samples
- Warranty: 2 Year
- 24-Hour Online Service: Solve your product problems and any other issues
Product Highlights

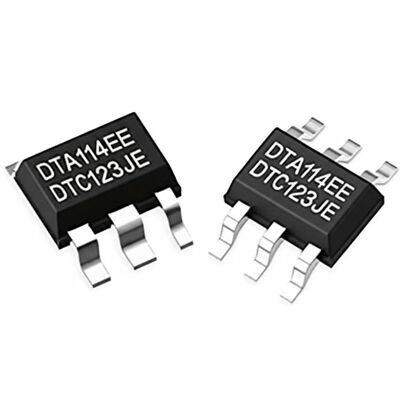

SOT-523 Digital Transistor DTA114EE DTC123JE Electrical Characteristics Part Number Io (A) VCC Gi Pc (mW) R1/R2 Makin MPQ DTA114EE -0.1 -50 -30 150 10K/10K 14 3000 DTC114EE 0.1 50 30 150 10K/10K 24 3000 DTC143ZE 0.1 50 80 150 4.7K/47K E23 3000 DTA144EE -0.1 -50 -68 150 47K/47K 16 3000 DTC144EE 0.1 ...
