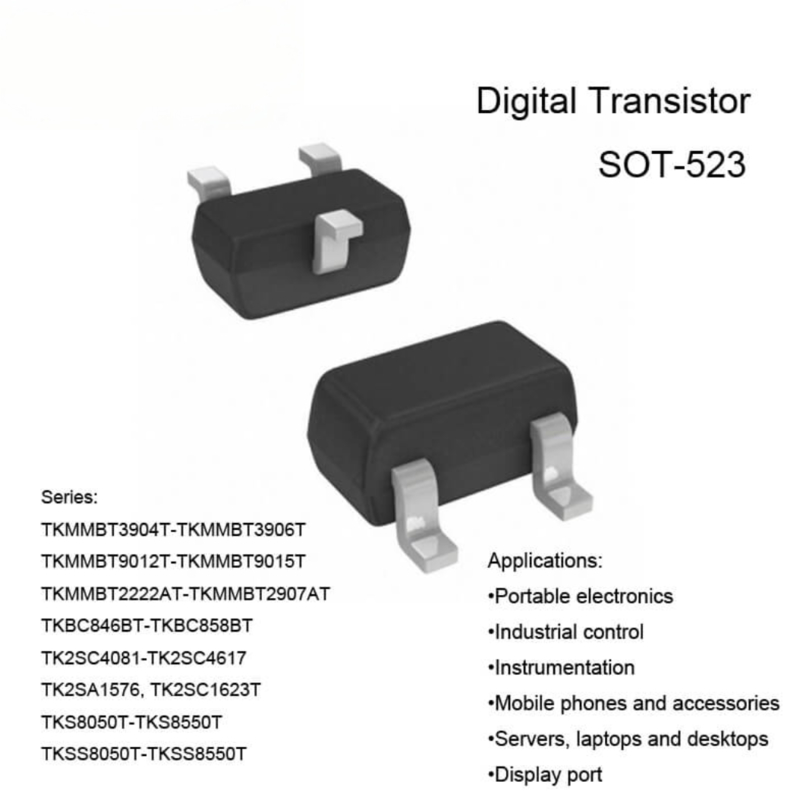

SOT-523 Digital Transistor DTA114EE DTC123JE
Product Details
| Package Outline: | SOT-523 | ||
|---|---|---|---|
| Highlight |
Digital Transistor DTA114EE,SOT-523 Digital Transistor |
||
Product Description
Electrical Characteristics — Suitable For SOT-523 Packages
Key Features
1. Integrated Resistors: Built-in bias resistors simplify design and save PCB space.
2. Ultra-Compact Size: SOT-523 is ideal for modern space-constrained electronics.
3. Low Power Consumption: Suitable for low-voltage and low-current applications.
4. Three-Terminal Configuration: Standard collector-base-emitter layout.
5. Simplified Circuit Design: Reduces need for external components.
6. Surface-Mount Technology: Compatible with automated assembly processes.
7. Low Parasitic Elements: Supports high-frequency signal integrity.
8. Limited Current and Power Handling: Optimized for signal-level operation.
Typical Applications
• Portable Electronics
• Industrial Control
• Instrumentation
• Mobile Phones & Accessories
• Servers, Laptops, and Desktops
• Display Port
Shipping & Support
Shipping Details
• Lead Time: 1–2 Weeks
• Delivery: 3–40 working days (As your choice & your country)
After-Sales Service
• Free Samples
• Warranty: 2 Year
• 24-Hour Online Service: Solve your product problems and any other issues
Product Highlights
Electrical Characteristics — Suitable For SOT-523 Packages Part Number Io (A) VCC Gi Pc (mW) R1/R2 Makin MPQ DTA114EE -0.1 -50 -30 150 10K/10K 14 3000 DTC114EE 0.1 50 30 150 10K/10K 24 3000 DTC143ZE 0.1 50 80 150 4.7K/47K E23 3000 DTA144EE -0.1 -50 -68 150 47K/47K 16 3000 DTC144EE 0.1 50 150 150 47K...
