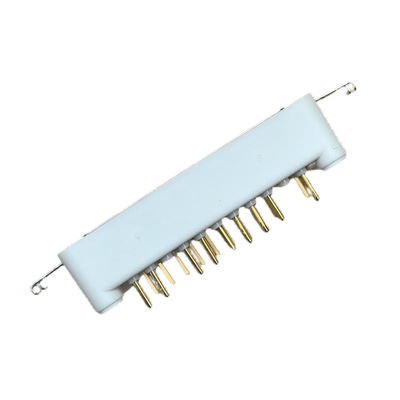

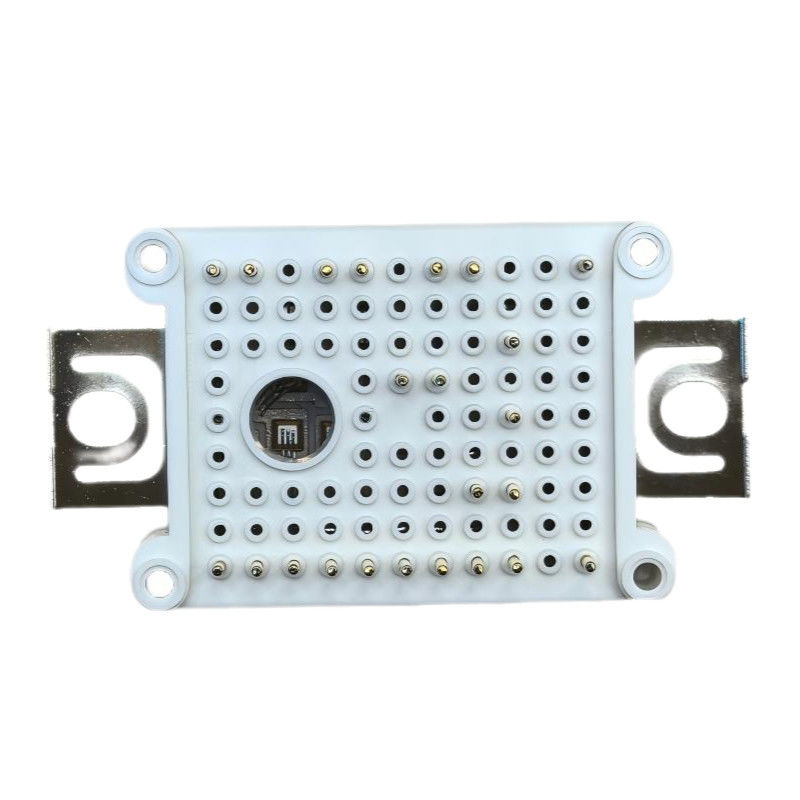

KVP200H12E4-3TB IGBT Module Unleashing the Full Potential of Industrial Power Systems

Name

KVP200H12E4-3TB IGBT Module Unleashing the Full Potential of Industrial Power Systems

Brand Name:	Krunter
Model Number:	KVP200H12E4-3TB

Detail Information

Product Description

Detail Information

Number Of Pins:

100

Forwarding Server Ip:

119.254.30.208

Size:

50*50MM

Contact Resistance:

50mΩ

Operating Temperature:

-55°C To +150°C

Socket Pitch:

0.5mm

Customizable Sockets:

Available

Insertion Force:

50g/pin

Open Way:

Double Key

Part Number:

BGA96(11.6*7.95)-0.8 Socket

Package:

BGA25, VFBGA25

Color:

Gray/blue

Current Rating:

1A

Socket Solutions:

Test And Burn-in

Insulation Resistance:

1000MΩ

Highlight:

3TB IGBT Module

,

Industrial Power Systems IGBT Module

,

KVP200H12E4 IGBT Module

Product Description

KVP200H12E4-3TB

Compact Package
Low Switching Loss
Assembled in PCB
Integrated NTC temperature sensor
Isolated Baseplate by Al2O3 substrate

Specification Parameters

TYPE	T1, T4				T2, T3				Circuit	Package	Technology
	VCES Volts	IC Amps	VCE(SAT) Volts	Ptot Watts	VCES Volts	IC Amps	VCE(SAT) Volts	Ptot Watts
	VCES Volts	IC Amps	VCE(SAT) Volts	Ptot Watts	VCES Volts	IC Amps	VCE(SAT) Volts	Ptot Watts
KVP100H12E4-3TB	1200V	100A	1.60V	375W	650V	50A	1.50V	175W	T type	EZPACK 2B	TrenchFS
KVP150H07E4-3IB	650V	150A	1.50V	335W	650V	150A	1.50V	335W	I type		TrenchFS
KVP150H12E4-3TB	1200V	150A	1.50V	500W	650V	75A	1.50V	215W	T type		TrenchFS
KVP200H12E4-3TB	1200V	200A	1.50V	600W	650V	100A	1.50V	250W	T type		TrenchFS

KVP200H12E4-3TB IGBT Module Unleashing the Full Potential of Industrial Power Systems 0
