Low VCE Sat IGBT Module Low Losses

Low VCE Sat IGBT Module Low Losses

Brand Name:	Krunter
Model Number:	KUG100H12S4L

Detail Information

Product Description

Detail Information

Place of Origin:

China

Technology:

Collector-Emitter Saturation Voltage:

1.5V

Collector-Emitter Capacitance:

100pF

Installation Style:

SMD/SMT

Product:

Diode Power Modules

Manufacturer:

PRX

Warranty:

365days

Power Dissipation:

500W

Subcategory:

Interface ICs

Lead Times:

Immediately Shipment

Voltage Rating:

1200V

Dimensions:

106.4*61.4*30.5mm

Moisture Sensitive:

YES

Highlight:

Short Circuit Current IGBT Module

Low VCE sat IGBT Module

Low Switching Losses IGBT Module

Product Description

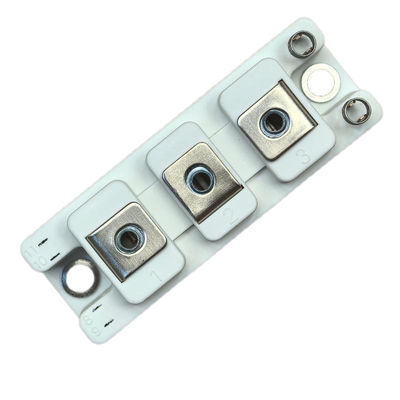

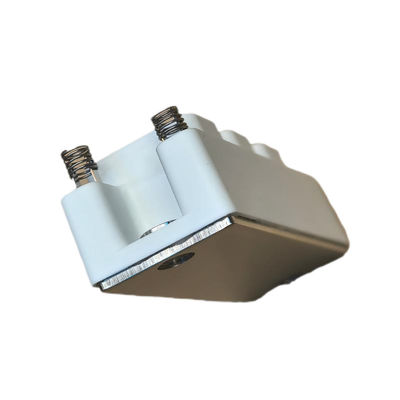

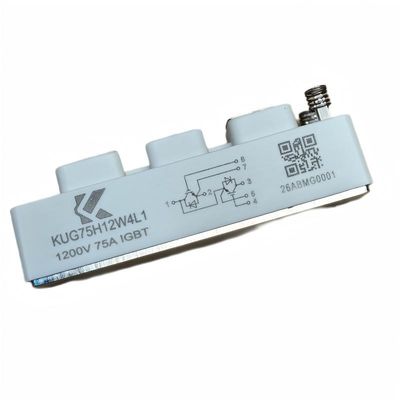

Low VCE sat and Short Circuit Current IGBT Module for and Low Switching Losses KUG100H12S4L
Low VCE(sat)
10μs Short Circuit current
Low switching losses
Positive VCE(sat) temperature coefficient
Free wheeling diodes with very low forward voltage drop and soft recovery
Industrial standard package with copper base plate

Internal Circuit Diagram

Specification Parameters

TYPE	VCES	VGES	IC	VCE(SAT)	(EON+EOFF)	TJ	Ptot	Circuit	Package	Technology
TYPE	Volts	Volts	Amps	Volts	mJ	TJ	Watts	Circuit	Package	Technology
KUG40H12S4L	1200V	± 20	40A	2.80V	7.2mJ	150℃	250W	2 Pack	34mm	NPT
KUG50H12S4L	1200V	± 20	50A	2.80V	7.2mJ	150℃	285W	2 Pack
KUG75H12S4L	1200V	± 20	75A	2.80V	10.6mJ	150℃	395W	2 Pack
KUG100H12S4L	1200V	± 20	100A	3.10V	13.4mJ	150℃	555W	2 Pack
KUG150H12S4L	1200V	± 20	150A	2.80V	17.0mJ	150℃	790W	2 Pack
KUG40H12E4L	1200V	± 20	40A	2.10V	8.8mJ	175℃	250W	2 Pack		Trench FS
KUG50H12E4L	1200V	± 30	50A	1.65V	10.1mJ	175℃	285W	2 Pack
KUG75H12E4L	1200V	± 30	75A	1.65V	18.0mJ	175℃	395W	2 Pack
KUG100H12E4L	1200V	± 30	100A	1.65V	24.8mJ	175℃	555W	2 Pack
KUG40H12W4L	1200V	± 20	40A	2.10V	8.4mJ	175℃	250W	2 Pack		Trench fast
KUG50H12W4L	1200V	± 20	50A	2.25V	9.4mJ	175℃	285W	2 Pack
KUG75H12W4L	1200V	± 20	75A	2.00V	14.0mJ	175℃	395W	2 Pack
KUG100H12W4L	1200V	± 20	100A	1.90V	19.5mJ	175℃	555W	2 Pack
KUG150H12W4L	1200V	± 20	150A	1.90V	27.8mJ	175℃	790W	2 Pack
