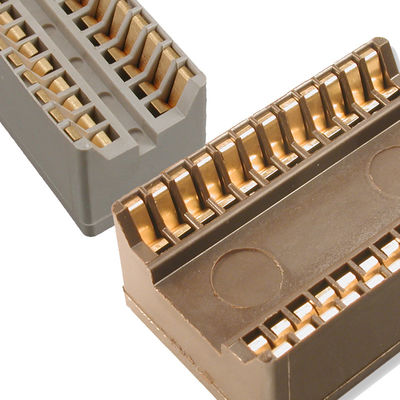

Testing Made Easy with Loranger Test Socket Featuring Low Insertion Force and Positive Contact Wiping

Name: Testing Made Easy with Loranger Test Socket Featuring Low Insertion Force and Positive Contact Wiping
Brand: Krunter Future Tech (Dongguan) Co., Ltd.
SKU: 0297002997ASSYA
Availability: InStock

Brand Name:	Loranger
Model Number:	0297002997ASSYA

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Dielectric Strength:

1000V AC/minute

Contact Plating:

Gold

Pin Count:

100

Number Of Pins:

Life Cycles:

10,000

Application:

Testing

Manufacturer:

Loranger

Withstand Voltage:

500V

Insulation Resistance:

1000MΩ

Voltage Rating:

250V

Socket Size:

15mm X 15mm

Operating Temperature:

-40°C To 125°C

Pin Pitch:

2.54mm

Material:

Metal

Socket Type:

Test Socket

Highlight:

Low Insertion Force Loranger Test Socket

Loranger Test Socket

Positive Contact Wiping Loranger Test Socket

Product Description

Top Loading Designs

High Side Contacts Help Align Package Leads
Positive Contact Wiping Action
Low Insertion Force
Bottom Socket Standoffs Help Board Cleaning
Various Sizes and I/O
Unloading Tool Also Available

0297002997ASSYA	21 Input/Output (I/O) Dual Inline Package (DIP) Socket	DIP	21	Multi
02758 141 6215	14 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	14	2.54 mm0.1 in
02758 161 6215	16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	16	2.54 mm0.1 in
02758 181 6215	18 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	18	2.54 mm0.1 in
02758 201 6218B	16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	16	2.54 mm0.1 in
02758 201 6215	20 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	20	2.54 mm0.1 in
02758 221 6211	22 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	22	2.54 mm0.1 in
02758 241 6215	24 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	24	2.54 mm0.1 in
02758 282 6215	28 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	28	2.54 mm0.1 in
02758 401 6218A	32 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	32	2.54 mm0.1 in
02758 401 6211	40 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	40	2.54 mm0.1 in
02758 641 6218	64 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	64	2.54 mm0.1 in
03000 182 0428	18 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	18	2.54 mm0.1 in
03000 482 642C	48 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Side-brazed DIP	48	2.54 mm0.1 in
03111 141 6215	14 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	14	2.54 mm0.1 in
03111 161 6218A	14 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	14	2.54 mm0.1 in
03111 161 6215	16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	16	2.54 mm0.1 in
03111 181 6215	18 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	18	2.54 mm0.1 in
03111 201 6218A	16 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	16	2.54 mm0.1 in
03111 201 6215	20 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	20	2.54 mm0.1 in
03111 201 6218	40 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	40	2.54 mm0.1 in
03111 221 6215	22 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	22	2.54 mm0.1 in
03111 241 6215	24 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	24	2.54 mm0.1 in
03111 281 6215	28 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	28	2.54 mm0.1 in
03111 401 6215	40 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	40	2.54 mm0.1 in
03112 281 6218A	24 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	24	2.54 mm0.1 in
03112 281 6215	28 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	28	2.54 mm0.1 in
03140 192 6215	19 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Hybrid DIP	19	2.54 mm0.1 in
03140 432 6215	43 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Hybrid DIP	43	2.54 mm0.1 in
03175 051 6215	5 Input/Output (I/O) and 1.9 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	Hybrid DIP	5	1.9 mm0.075 in
03235 241 6218A	16 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	16	1.27 mm0.05 in
03235 241 6218B	12 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	12	1.27 mm0.05 in
03235 241 6215	24 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	24	1.27 mm0.05 in
03235 241 6218	20 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	20	1.27 mm0.05 in
03235 301 6218D	30 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	30	1.27 mm0.05 in
03235 301 6215	30 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	30	1.27 mm0.05 in
03235 401 6215	40 Input/Output (I/O) and 1.27 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	40	1.27 mm0.05 in
03545 202 6218H	8 Input/Output (I/O) and 2.54 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP-8	8	2.54 mm0.1 in
03560 051 X218B	4 Input/Output (I/O) and 5.08 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	4	5.08 mm0.2 in
03560 051 X218	6 Input/Output (I/O) and 2.794 Millimeter (mm) Pitch Dual Inline Package (DIP) Socket	DIP	6	2.794 mm0.11 in
03570 271 6217	27 Input/Output (I/O) Dual Inline Package (DIP) Socket	SPM27-BA & BB	27	Multi
04540 301 6218A	23 Input/Output (I/O) Dual Inline Package (DIP) Socket	Smart Power 23 lead DIP	23	Multi
0297002997 ASSY	26 Input/Output (I/O) Dual Inline Package (DIP) Socket	DIP	26	Multi
0297702995 ASSY	34 Input/Output (I/O) Dual Inline Package (DIP) Socket	DIP	34	Multi
